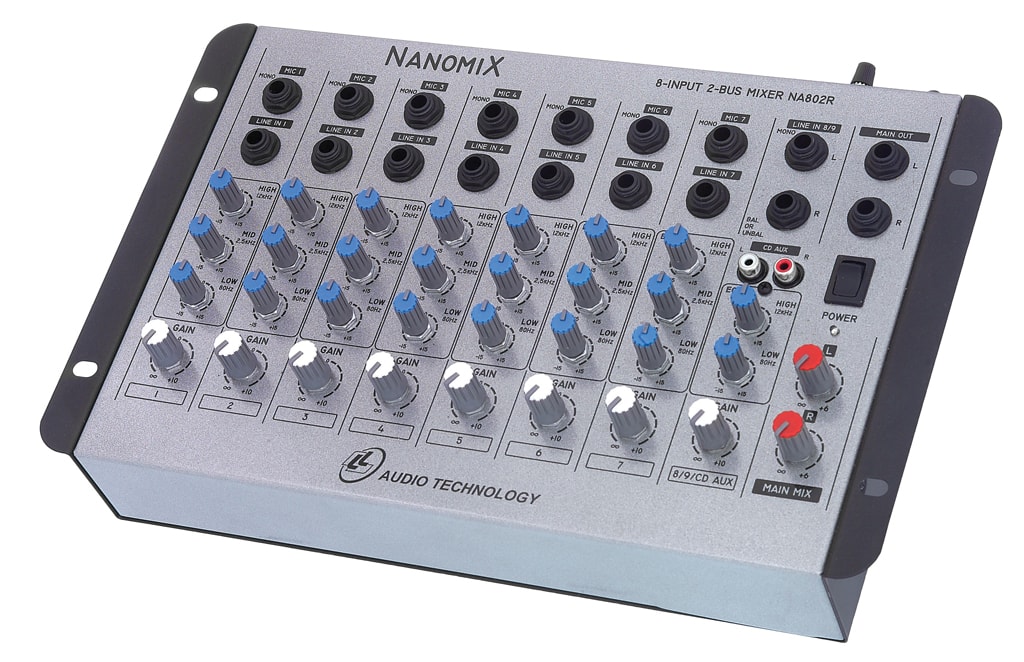

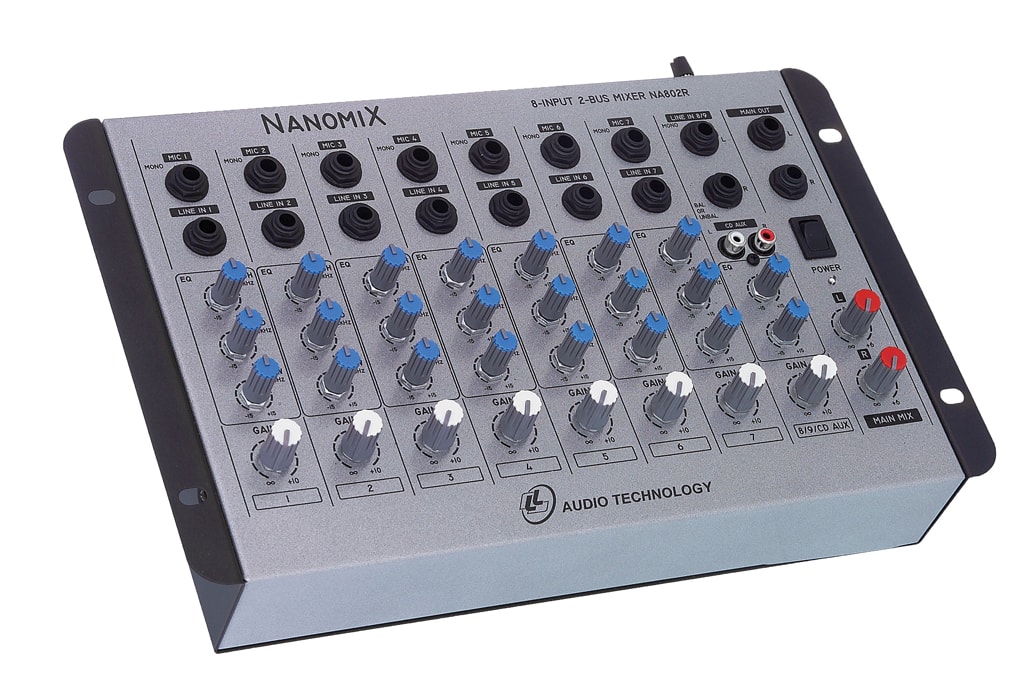

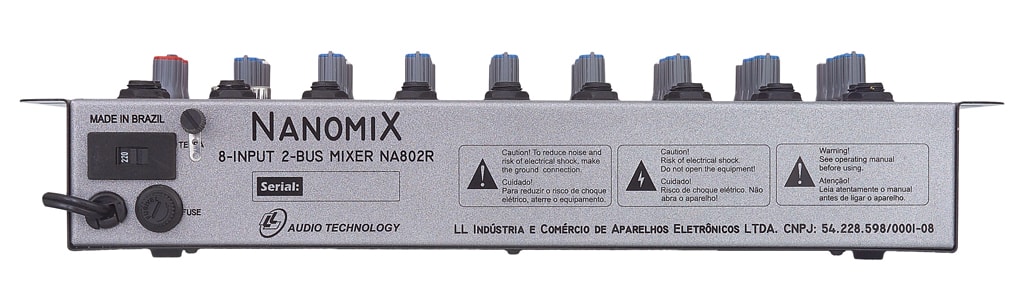

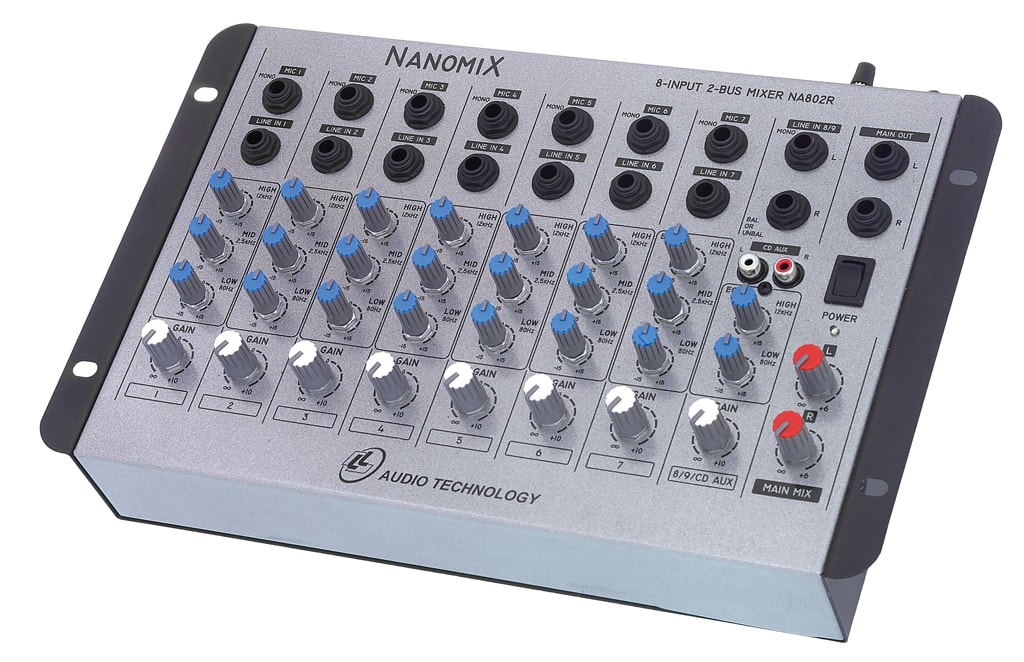

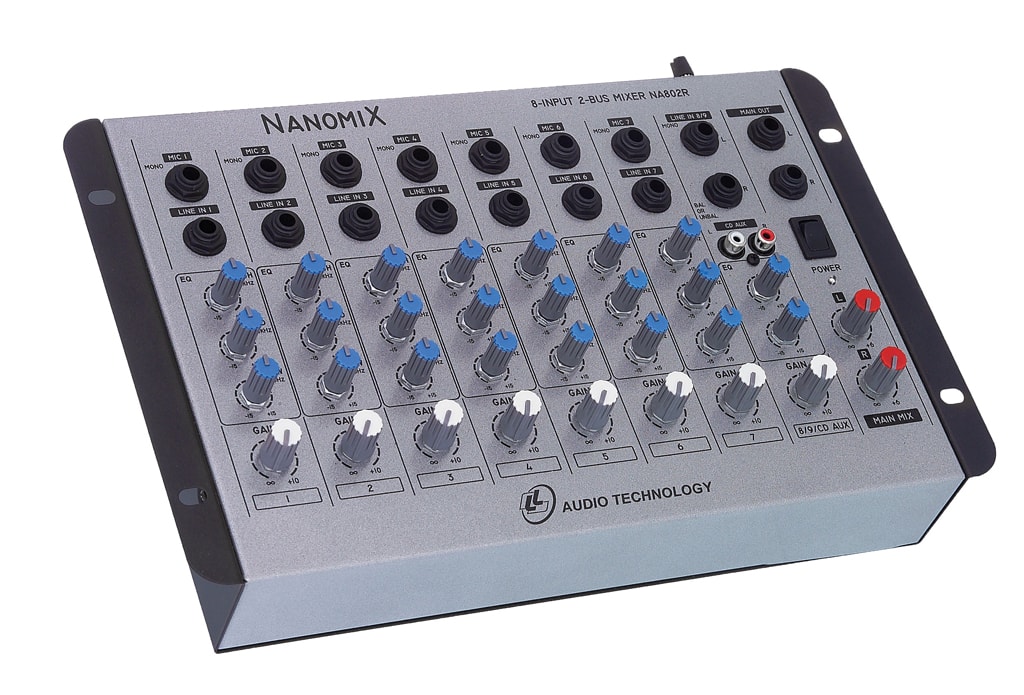

NA802R

Technical specifications

Channel Mic and Line
Mono channels:
MIC - Connector 1 / 4 "TRS (P10)
LINE - Connector 1 / 4 "TRS (P10)

03 ways equalization: LOW, MID and HIGH
GAIN: channel volume control

channel stereo:
LINE L (1 / 4 "TRS - P10) / R (1 / 4" TRS - P10)
CD / AUX L (RCA) / R (RCA)

2-way EQ: LOW and HIGH
GAIN: channel volume control

Resource Master (Main Mix)
output:
MAIN OUT L - L of the table output with volume control "MAIN MIX L"
MAIN OUT R - L of the output table with volume control "MAIN MIX R"

NA802R - 8 channels
Supply: 127/220 Volts
Power consumption: 11 W
dimensions mm (H x W x D): 75 x 274 x 222
