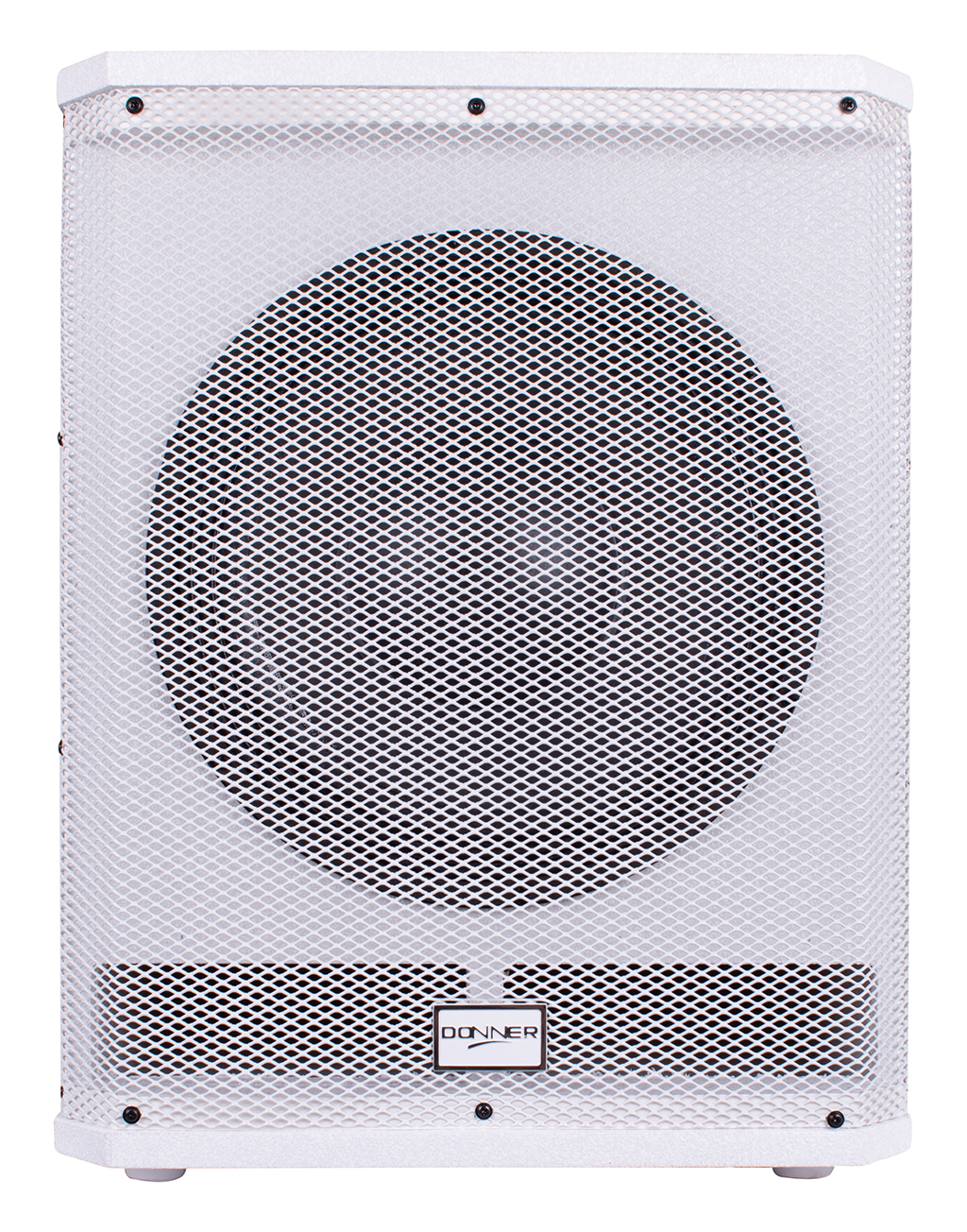

Acoustic System: Bass Reflex
Amplifier: 4-D Class-D Dual-Amplifier
Output Speaker out: Connector (Speakon)
Frequency Response: 35 Hz - 350 Hz @ -10dB
Crossover: .Linkwitz Riley 12dB / 8th and 24dB / 8th
Crossover Low Pass Adjustable Frequency: 50 Hz - 280 Hz 24dB Oct
Freq Response out X-Over L / R: 120Hz at 20KHz 24 Db Oct
Freq Response line out L / R: 20Hz to 20kHz
Crossover Crossover Adjustment Subwoofer: 50Hz to 280Hz 24 Db Oct
Integrated Circuit Protection: Temp / Dc / Over
Impedance: 4Ω
Case: MDF 15mm
Screen: Carbon Steel
Speaker: 12 "Polypropylene and rubber rim
Power RMS @ 4Ω: 500 W (250 + 250W RMS @ 4Ω)
Power Output SPEAKER OUT: 250W RMS @ 4Ω
Dimensions (W x H x D): (H) 557 (L) 391 (W) 550
Voltage: 110/220 V
Fuse: 5.0 A
Maximum power consumption: 550 W
Weight: 24.7 Kg
